Locate to save time, be efficient and reduce repair costs.
The CA 6683 LOCAT is an indispensable tool for all home maintenance, renovation and improvement work.
It's easy to use and allows you to quickly locate electrical cables, metal water pipes or heating pipes in walls or floors.
On a live or dead electrical installation, it identifies the sockets, switches, circuit breakers or fuses connected to the circuit. In the event of a fault, it can be used to locate the site of a short-circuit, break or disconnection.

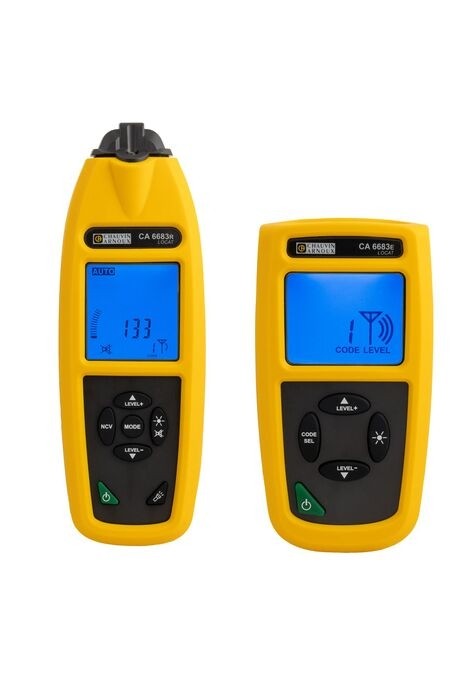

The CA 6683 LOCAT consists of a transmitter and receiver, each with a large, clear, backlit display and automatic adjustment of transmitting power/detection sensitivity, for simple, intuitive operation.
If voltage is present, the transmitter warns of the danger and indicates its value.
The transmitted signal is digitally coded to avoid interference, and its power can be adjusted manually to fine-tune detection.
In complex cases, the identification code configuration allows up to 7 transmitters to be used simultaneously.
The receiver is equipped with a built-in torch, a silent mode and automatic or manually adjustable sensitivity settings for greater selectivity to suit all situations on site.
The receiver can be used on its own to locate a live conductor connected to the active conductor (phase) of the electricity distribution network.
Main applications :
Electricity :
• Following the cable through a wall
• Locating buried conductors
• Locating cable routes in a house
• Determining the location of a break in the circuit
• Locating a short circuit
• Locate a socket, switch, junction box, fuse, circuit breaker, etc.
Plumbing/heating :
• Locate pipes (copper, steel, etc.)
• Following a plastic pipe
• Determining the location of a cork
Telecom:
• Cable marking
• Follow a telephone line
• Discrimination of a pair in a strand
