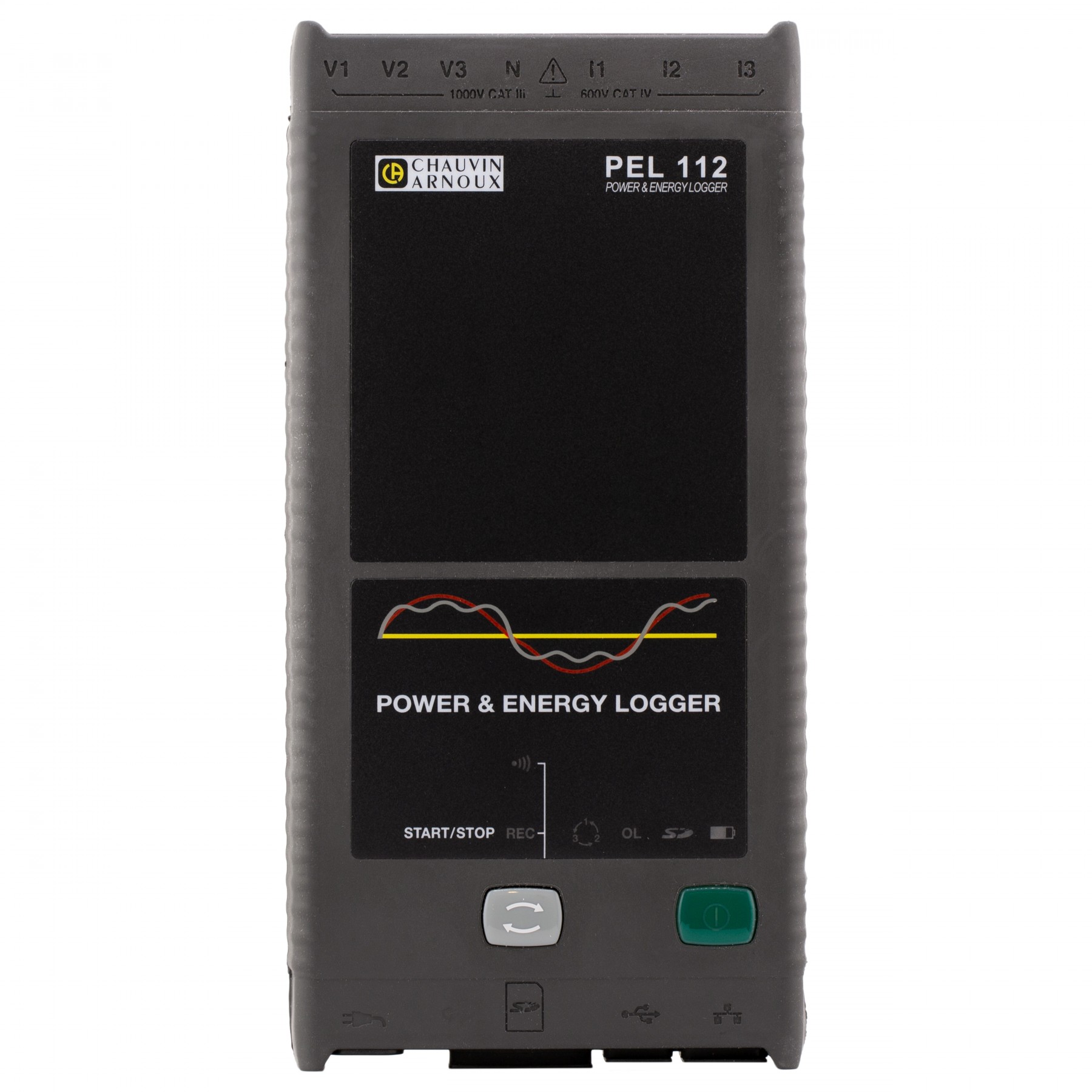

POWER LOGGER PEL 112

Technical datasheet
References
Support

Highlights

Possibility of recordings covering several months
Breakdown of energy losses
Installation without cutting off the mains supply
Android application with motor diagnostics

Description

The PEL 112 measures and records all the power and energy values.
It can be used wherever there is electricity:
• electricity generator: renewable energies, thermal energy, etc.
• industries: metallurgy, glassmaking, agri-food
• residential buildings, tertiary, etc.
• infrastructure and transport
• datacenters, etc.

Applications
• Energy audits
• Electrical diagnostics
• Industrial maintenance

Simple, effective ergonomics
• compact and magnetized
• 3 voltage inputs and 3 current inputs
• ideal for use in cold rooms (-20 °C)
• self-powered via the phase (option)

RMS and DC measurements
• AC and/or DC voltages up to 1,000 V
• currents up to 10 kA AC or 5 kA DC (depending on the current sensor).
• active, reactive and apparent power values
• active, reactive and apparent energy values
• fundamental and balanced active power values and unbalanced active power values
• measurements and characterization on motors (via Android application)

Functions
• breakdown of energy losses
• phase information: cos φ, tan Φ, power factor (PF)
• crest factor
• THD calculation for currents and voltages
• DC, 50 Hz, 60 Hz and 400 Hz (Naval, etc.) measurements

PEL Transfer software
With the PEL Transfer software you can:
• set up your PEL
• check the connections before recording begins
• download the measurements recorded in the PEL
• view the results of the various measurements and analyses
Additional advantage: PEL Transfer converts your electricity consumption into the local currency (€, £, $, etc. - 8 tariff ranges).

Communication and networks
The PEL 110 models offer multiple communication modes:
- USB , the simplest link when not working remotely
- Ethernet RJ45 or Wifi (server): connect your PEL11x to the server to communicate from any workstation in the network equipped with the PEL Transfer software
- Wifi (Access Point):
• Create a direct link between the PEL11x and your computer
• The Access Point (AP) mode supports up to 5 clients

Consult the notices in other languages

References

Designation

Price

Reference

Quantity

Actions

LOGGER PUISSANCE PEL112

Accessories

P01157156

Quotation

Standard Carrying Bag 380x280x200

P01298066

Quotation

DATAVIEW Software

P01102095

Quotation

C193 clamp BK

P01120323B

Quotation

J93 CLAMP

P01120110

Quotation

MN93 clamp BK

P01120425B

Quotation

MN93A clamp BK

P01120434B

Quotation

PAC 93 clamp BK

P01120079B

Quotation

A193 AmpFlex 450mm BK

P01120526B

Quotation

A193 AmpFlex 800mm BK

P01120531B

Quotation

USB-A USB-B Cable

P01295293

Quotation

ESSAILEC Adapter

P01102131

Quotation

REELLING BOX

P01102149

Quotation

CA833X-F 5A Adapt. box

P01101959

Quotation

Set of inserts/rings

P01102080

Quotation

Rechargeable battery pack

HX0086

Quotation

Bag No.22

P01298056

Quotation

MINIFLEX MA194-350

P01120592

Quotation

MINIFLEX MA194-250

P01120593

Quotation

MINIFLEX MA194-1000

P01120594

Quotation

MINI94 AC CURRENT CLAMP

P01106194

Quotation

E94 AC-DC CURRENT CLAMP

P01120044

Quotation

PEL 600V POWER ADAPTER V3

P01102204B

Quotation
