RGB

Highlights

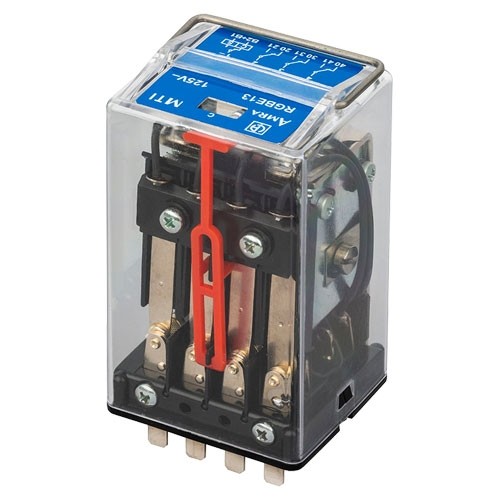

  • Instantaneous bistable plug-in relays with 3 or 4 contacts, 12 A
  • Automatic de-energization following operation, magnetic latch
  • Solid and rugged construction for intensive duty
  • Very high electrical life expectancy and exceptional endurance
  • Self-cleaning knurled contacts
  • Optional magnetic arc blow-out
  • Fitted with mechanical optical contact status indicator as standard
  • Optional manual operating lever
  • Transparent cover, pull-out handle
  • Wide variety of configurations and customizations
  • Wide range of sockets
Description

RGB series relays (3 or 4 changeover contacts) are highly reliable products providing top performance, suitable for applications in particularly harsh and unsettled environments, such as:

- High voltage electricity distribution stations and medium voltage substations.

Automatic de-energization. Minimum control pulse of 50 ms. Can be connected to a permanent or pulsed power supply.

Coils galvanically separated or with common negative, depending on the model.

Knurled contacts to provide lower ohmic resistance thanks to the multiple electrical connection points:

- Extended electrical life expectancy of the component

- Optimal performance for strongly inductive DC loads and for very low loads, such as in the case of interface signals.

Exceptional breaking capacity for controlling very heavy duty DC loads, also with intensive switching frequency. Optional magnetic arc blow-out for even higher breaking capacity.

Elevated production versatility. Nominal voltage available from 12 to 220VDC/440VAC, with multiple operating ranges.

Facility to adapt the products to meet specific application requirements.
The typical application sectors are among the most demanding, such as:

- Electricity generating stations

- Electrical transformer stations

- Fixed equipment for railways

- Industries using continuous production processes (chemical and petrochemical, rolling mills, cement works, etc.)

Compliance with standards

  • EN 61810-1, EN 61810-2, EN 61810-7 Electromechanical elementary relays
  • EN 60695-2-10 Fire hazard testing
  • EN 50082-2 Electromagnetic compatibility
  • EN 60529 Degrees of protection provided by enclosures
  • LV15/LV16 ENEL / TERNA approved
