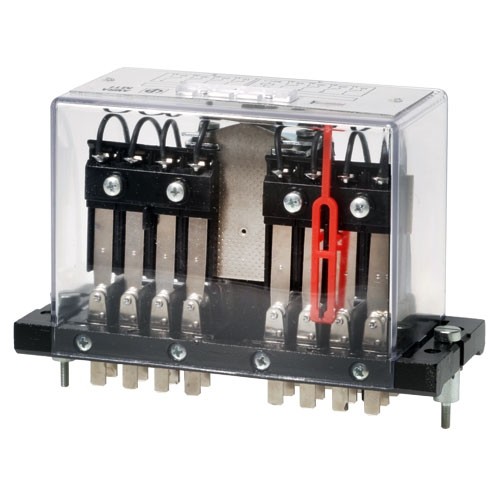

RMD

RMD
Highlights
  • Monitoring relay with integrated coil continuity testing
  • Plug-in monostable instantaneous relays, with coil continuity test and 4-8-16 contacts, 10 A
  • Solid and rugged construction for intensive duty
  • Very high electrical life expectancy and exceptional endurance
  • Self-cleaning knurled contacts
  • Magnetic arc blow-out as standard
  • Fitted with mechanical optical contact status indicator as standard
  • Optional manual operating lever
  • Transparent cover, fixing/pull-out screws
  • Wide variety of configurations and customizations
  • Wide range of sockets
Description

Very high performance relays available with 4, 8 or 16 changeover contacts. These relays share the same basic mechanical design with the RGM series, and offer the same specifications and performance.

Coil continuity supervision and monitoring by means of a built-in auxiliary relay. Continuous check and periodic test functions available.

Knurled contacts to provide lower ohmic resistance thanks to the multiple electrical connection points:

- Extended electrical life expectancy of the component

- Optimal performance for strongly inductive DC loads and for very low loads, such as in the case of interface signals

Exceptional breaking capacity for controlling very heavy duty DC loads, also with intensive switching frequency.
Optional magnetic arc blow-out for even higher breaking capacity.

Available nominal voltage from 12 to 220VDC/440VAC.

Facility to adapt the products to meet specific application requirements.
The typical application sectors are among the most demanding, such as:

- Electricity generating stations

- Electrical transformer stations

- Fixed equipment for railways

- Industries using continuous production processes (chemical and petrochemical, rolling mills, cement works, etc.)

Compliance with standards
  • EN 61810-1, EN 61810-2, EN 61810-7 Electromechanical elementary relays
  • EN 60695-2-10 Fire hazard testing
  • EN 60529 Degrees of protection provided by enclosures
  • LV15/LV16 Compliance to ENEL/TERNA standard
