THYRITOP 500 POWER CONTROLLER

THYRITOP 500 POWER CONTROLLER
Highlights
  • Ideal for controlling and obtaining comprehensive information on the values of the currents, voltages and powers of industrial electrical heating processes.
  • Configurable command input: 0-10 V – 0/4-20 mA
  • Master/slave operating mode
  • Conduction: BURST firing, half single-cycle, phase angle
  • Power control: UxI, U², I², U, I
Description

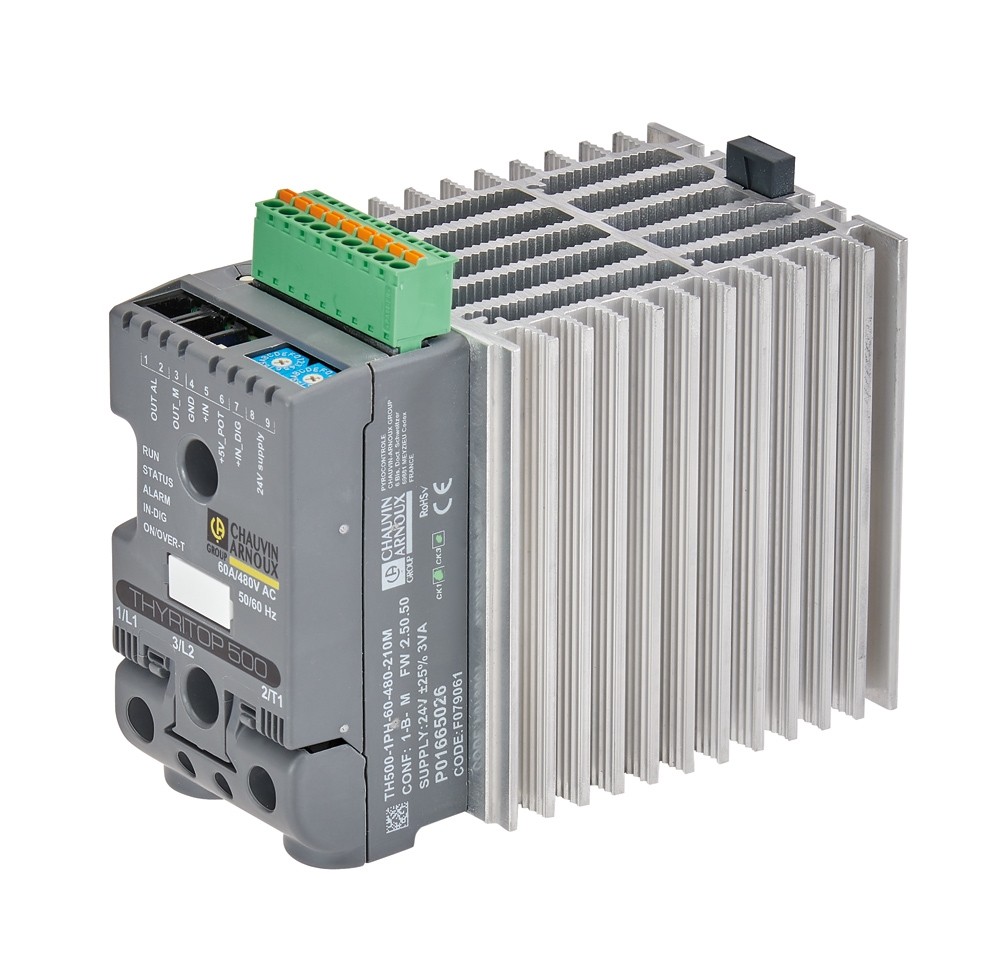

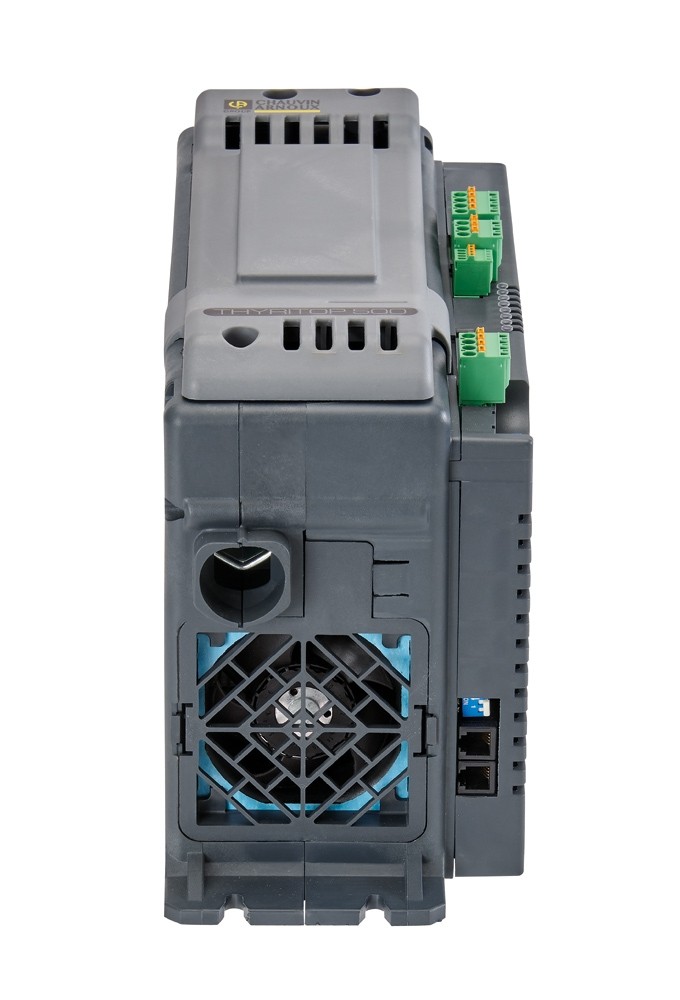

THYRITOP 500 range of single-phase power controllers

The THYRITOP 500 models can be used to manage the electrical power of most industrial heating elements:

  • Low thermal coefficient
    • Nickel-chrome resistor
    • Medium and long-wave infrared lamps
  • High thermal coefficient
    • Kanthal™ and Super Kanthal™ (MiSo2) heating resistors
    • SHort-wave infrared lamps
  • Inductive loads
    • Transformers
    • Inductors

2 models are available

  • 25 A – 40 A – 50 A – 60 A – 75 A – 90 A – 120 A single-phase power controllers
  • 150 A – 200 A – 250 A single-phase power controllers

Main specifications

  • Control: I - I² - V - V² - P
  • Current ranges: 25 A – 40 A – 50 A – 60 A – 75 A – 90 A – 120 A – 150 A – 200 A – 250 A
  • Rated voltage ranges: 480 Vac – 600 Vac – 690 Vac
  • Configurable control input: 0-10 V – 0/4-20 mA
  • Activation: BURST firing – Half single-cycle mode with zero voltage switching – Phase angle
  • Master/slave operating mode for controlling three-phase resistive loads

Advanced customization and parameterization with the FREE PYROTOOLS software. A simple, clever tool for:

  • Configuration of the parameters
  • Display of the data and analysis of the parameters (measured values, setpoints, alarms, etc.)
  • Data recording and archiving

The cables for connecting the PC and the THYRITOP 500 (for configuration) are sold separately.
They can be irdered with the following codes:

  • RS232 configuration cable – Code P01665998
  • RS485 configuration cable – Code P01665999

Available options

  • Load break alarm, total or partial
  • Current limitation
  • >Control of V, I, P
  • 2-wire RS485

Main sectors of application

  • Industrial furnaces for heat treatment and metallurgy
  • Melting, sintering and nitriding furnaces
  • Furnaces for ceramics and precious metals
  • Industrial dryers
  • Heating systems with infrared lamps (long, medium and short wave)
  • Welding applications on conditioning machines
  • Blowing machines for plastics, thermoforming machines
  • Furnaces equipped with Super Kanthal™, silicon carbide heating elements
Designation
Price
Reference
Quantity
Actions
TH500 MONO 25A 480V RS485 REGULATEUR DE PUISSANCE
-
P01665003
-
Quotation
TH500 MONO 25A 480V I_LIMIT HB RS485
-
P01665004
-
Quotation
TH500-1PH-25-480-210M
-
P01665005
-
Quotation

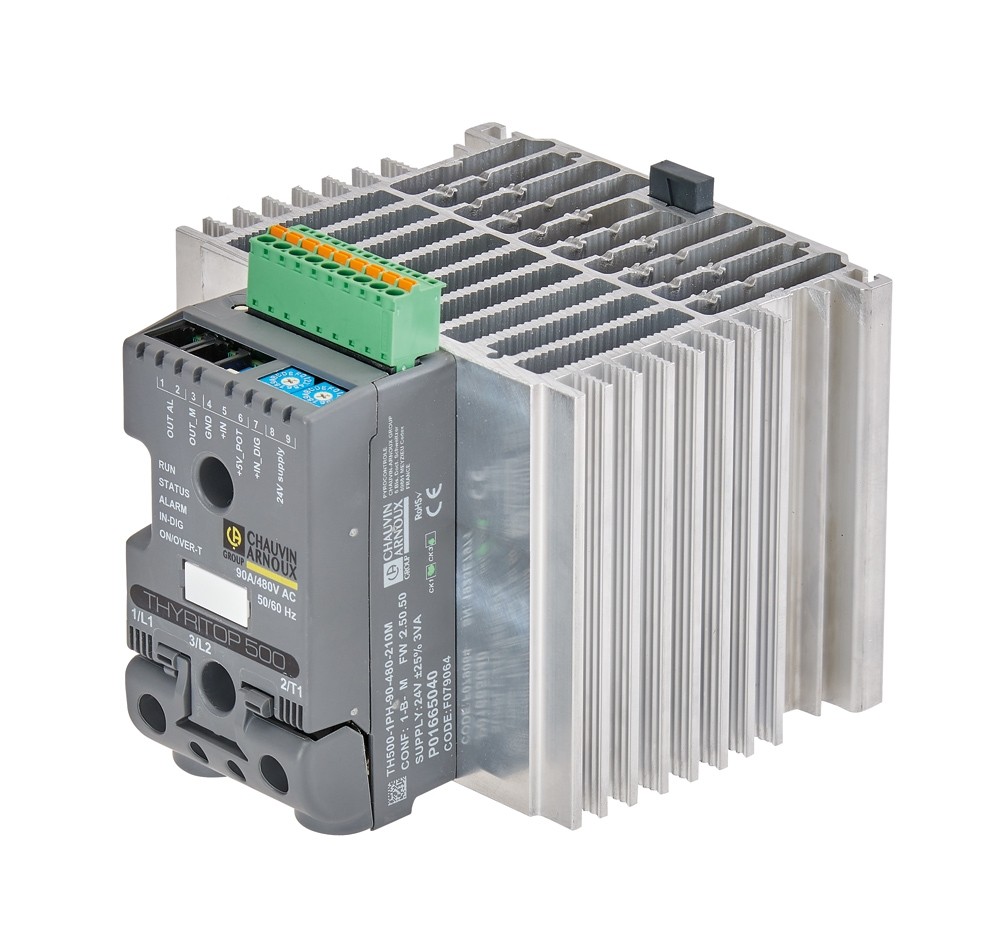

TH500-1PH-90-480-210M
-
P01665040
-
Quotation
TH500-1PH-120-480-210M
-
P01665047
-
Quotation
